Product Description:

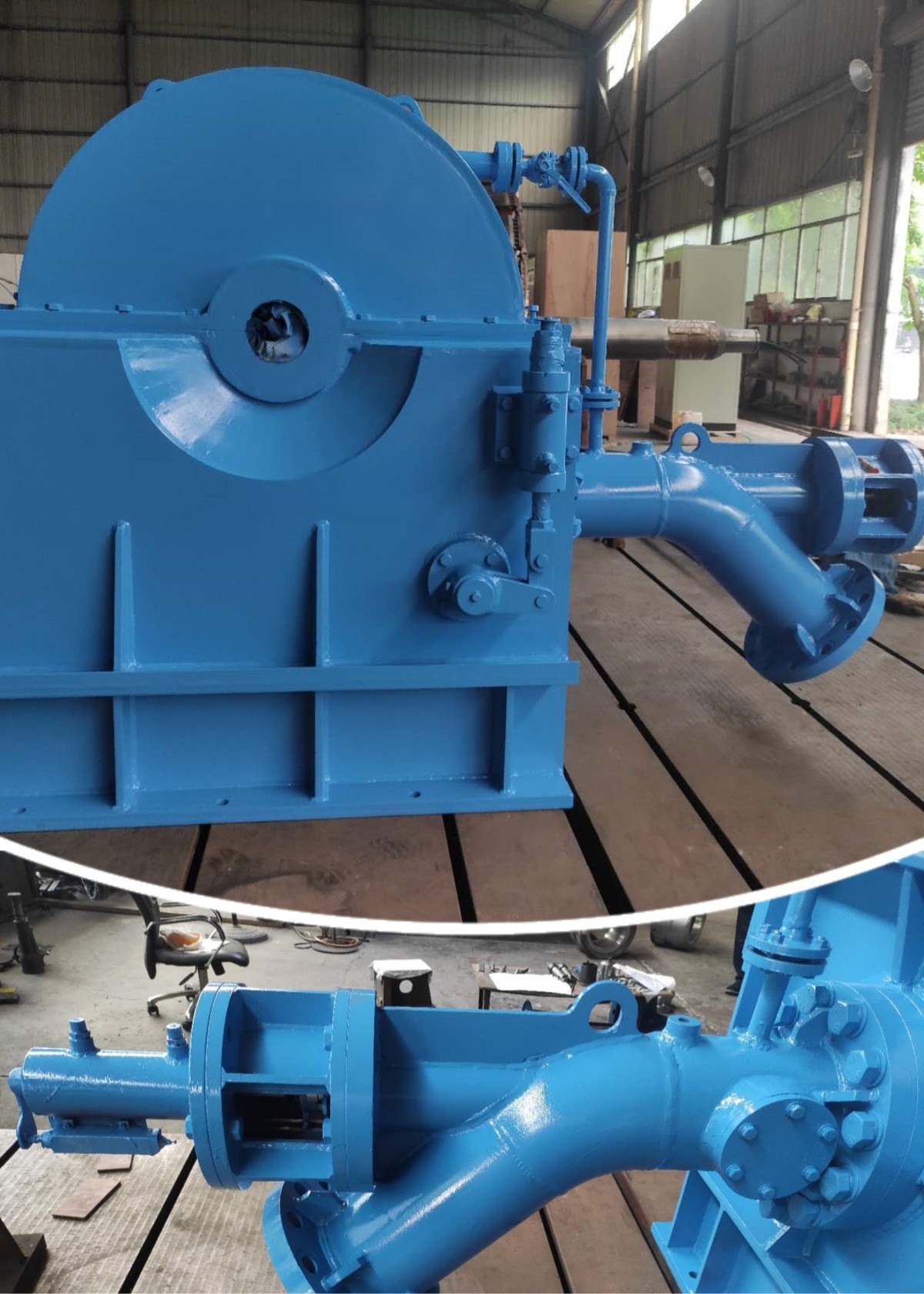

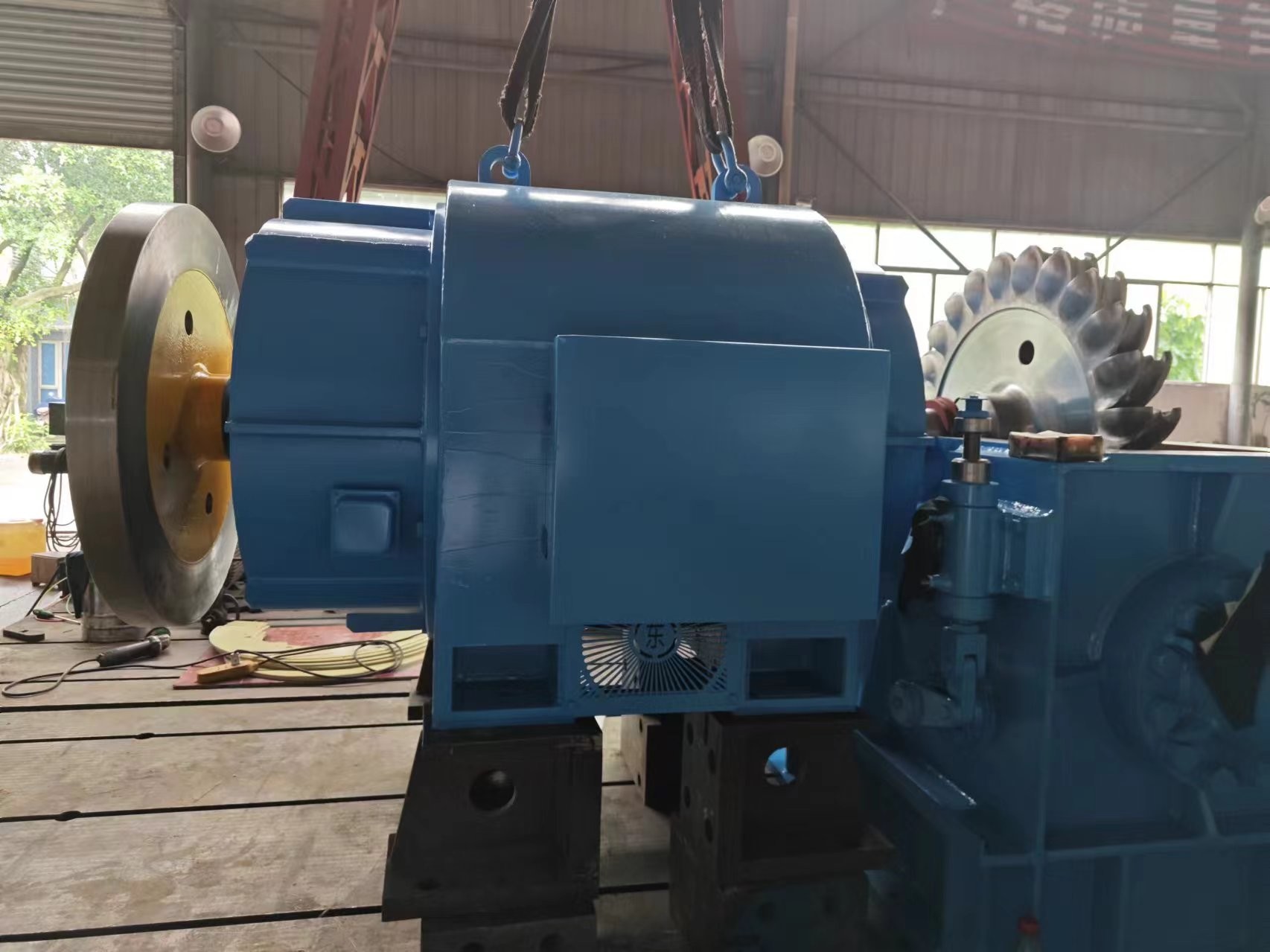

The Pelton Turbine Generator is designed to convert the hydraulic energy from the water into mechanical energy, and then into electrical energy. The generator consists of a Pelton Wheel Turbine, which is a type of impulse turbine. The Pelton Turbine has a series of buckets around its circumference that are shaped like a double cup. These buckets are arranged in a circular pattern around the Pelton Wheel Turbine.

When water passes through the Pelton Wheel Turbine, it is directed onto the buckets, which causes the wheel to rotate. The rotation of the Pelton Wheel Turbine is transferred through a shaft to the rotor of the generator. The rotor of the generator consists of a series of electromagnets that are arranged in a circular pattern around the shaft. As the rotor rotates, the electromagnets pass over the stator, which consists of a series of stationary coils. This creates a magnetic field, which induces an electrical current in the stator coils. The electrical current is then sent to the electrical grid.

The Pelton Turbine Generator is available in different sizes, ranging from 5-50t. It can be cooled using either air or oil cooling, depending on the specific design of the generator. The generator is designed to operate in a variety of conditions, including high altitudes, low temperatures, and high humidity.

The Pelton Turbine Generator is a reliable source of clean energy that can be used to power homes, businesses, and industries. It is an excellent choice for areas that have a high water flow rate, such as rivers and streams.

Features:

• Product Name: Pelton Turbine Generator
• Excitation Mode: Brushless Or Thyristor
• Power Output: 100kw-50mw
• Insulation Class: F
• Speed Range: 500-3000r/min
• Cooling Method: Air/Oil Cooling

Technical Parameters:

Applications:

The DSSD CJ-Pelton Hydro Turbine is a high-quality Pelton Turbine Generator that is designed to deliver reliable and efficient power output in a variety of different settings. Whether you need a generator for industrial or commercial applications, this Pelton Type Turbine Generator is an excellent choice that comes with a range of features and benefits that are sure to meet your needs.

The DSSD CJ-Pelton Hydro Turbine is perfect for a wide range of different settings and applications. Some of the most common applications for this Pelton Turbine Generator include:

• Hydroelectric power plants
• Industrial facilities
• Commercial buildings
• Large-scale agricultural operations
• Mining operations

When it comes to scenarios where the DSSD CJ-Pelton Hydro Turbine is ideal, there are several different factors to consider. Some of the most important include:

• High head water sources
• Locations with strong water flow rates
• Areas where a reliable power source is essential
• Settings where low maintenance requirements are a priority

The DSSD CJ-Pelton Hydro Turbine comes with a range of features and benefits that make it an excellent choice for any setting where reliable and efficient power output is essential. Some of the key features and benefits of this Pelton Type Turbine Generator include:

• Certified by ISO, CE, and TUV
• Minimum order quantity of just 1 set
• Export packing (wooden cases+plastic film) for safe transportation
• Delivery time of 150 days
• Payment terms of EXW
• Supply ability of up to 500 units per year
• Weight ranging from 5-50t, depending on model
• Cooling method of air/oil cooling
• Rated frequency of 50/60Hz
• Power output ranging from 100kW to 50MW
• Rated voltage of 6-10kV

If you're looking for a reliable and efficient Pelton Turbine Generator, the DSSD CJ-Pelton Hydro Turbine is an excellent choice. With a range of features and benefits that are sure to meet your needs, this high head Pelton Turbine is perfect for a wide range of different settings and applications.

Customization:

Support and Services:

The Pelton Turbine Generator product technical support and services include:

- Installation and commissioning assistance

- Regular maintenance and inspection services

- Repairs and replacement of parts

- Troubleshooting and diagnostic support

- Upgrades and retrofits for improved performance and efficiency

- Training and education for operators and maintenance personnel

Packing and Shipping:

Product Packaging:

• The Pelton Turbine Generator will be securely packaged in a sturdy cardboard box.
• The product will be wrapped in bubble wrap and foam padding to prevent any damage during transportation.
• All the necessary accessories and instructions will be included in the package.

Shipping:

• The Pelton Turbine Generator will be shipped via a reliable courier service.
• Shipping costs will be calculated based on the destination and weight of the package.
• Customers will receive a tracking number to monitor the delivery progress of their order.
• Delivery times may vary depending on the location and shipping method selected by the customer.

FAQ:

Q1: What is the brand name of this product?

A1: The brand name of this product is DSSD.

Q2: What is the model number of this product?

A2: The model number of this product is CJ-pelton hydro turbine.

Q3: What is the place of origin of this product?

A3: The place of origin of this product is DeYang, SiChuan, China.

Q4: What certifications does this product have?

A4: This product has ISO, CE, and TUV certifications.

Q5: What is the minimum order quantity and price of this product?

A5: The minimum order quantity is 1 set and the price is $30,000.

Q6: What are the packaging details of this product?

A6: The packaging details of this product are export packing (wooden cases+plastic film).

Q7: What is the delivery time of this product?

A7: The delivery time of this product is 150 days.

Q8: What are the payment terms for this product?

A8: The payment terms for this product are EXW.

Q9: What is the supply ability of this product?

A9: The supply ability of this product is 500 per year.
