High performance hydro turbine generator/water turbine generator

1.Product Paramenters

• Hydro turbine generator is droved directly or indirectly by hydro turbine. The rotating speed is less than 1500r/min, with horizontal and vertical arrangement. Excitation mode with brushless and static silicon type
• Components including stator, rotor,base frame, bearing, excitation motor or collecting ring. The outlet voltage from 400V to 13.8KV, and frequency could be 50Hz or 60Hz, output from 100Kw to 70Mw. Our generator are high efficiency, reliable, manufacture and tests all follow related IEC standards.

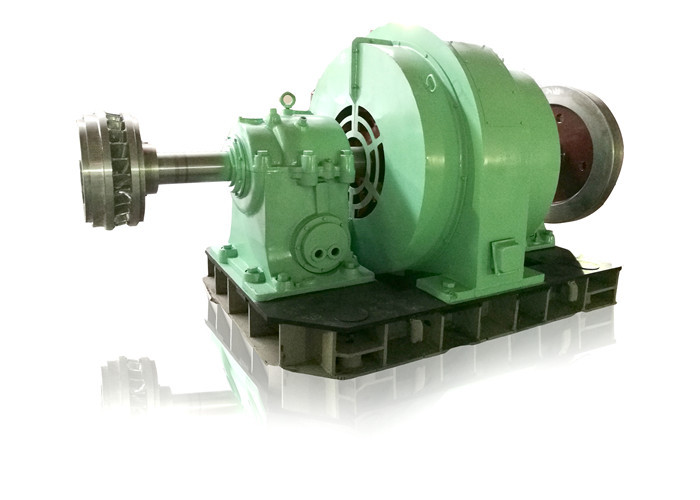

2.Product display

3.certificate

4.Structure

Hydro-generator is composed of rotor, stator, frame, thrust bearing, guide bearing, cooler, brake and other main components (see figure).The stator is mainly composed of frame, iron core and winding.The stator core is made of cold rolled silicon steel sheet, and the whole and split structure can be made according to the manufacturing and transportation conditions.Generally, closed circulation air cooling is used for cooling water turbine generator.Large capacity units tend to use water as the cooling medium to directly cool the stator.If the stator and rotor are cooled simultaneously, it is a double internal chiller generator set.

Deyang Dongsen Hydropower Equipment Co., Ltd. is located in Deyang City, Sichuan province, China, and established in 2 0 07.Deyang is one of the three major manufacturing bases in China. It offers strong support of resource allocation for us. Dongsen is a professional comprehensive engineering company, especially in hydropower projects fileds. Our main business is designing and manufacturing hydraulic turbine generator sets as well as E P C for hydro-power stations, providing new hydro equipment, auxiliaries, installing transmission lines, designing projects, upgrading capacity, maintaining equipment and investing hydropower stations.

Our products are Francis turbine, Kaplan turbine, Tubular turbine, Pelton turbine and Turgo turbine generator sets with capacity from 1 0 0 kilowatt to 5 0, 0 0 0 kilowatt. Dongsen's technical team has 2 0 years experience in hydropower equipment,
and we have 4 development staffs and 37 skillful technicians. Dongsen has strong technical competence, modern production capacity, scientific management. We passed I S O 9 0 0 1: 2 0 0 8 quality system certification. Dongsen has already provided reliable products and excellent services for more than 5 0 0 hydropower stations. Our motto is Customer, Quality and Reputation is the first. We acquired high reputation from customers and cooperators. Today, The One Belt One Road policy provides us more opportunities to do business all over the world. Dongsen is pursuing to be a top-class hydropower equipment supplier. Dongsen sincerely welcome you to visit our factory and be our cooperator.

Contact-Jasmine tan-TEL/WHATSUP:+8618990234753
