Hydro Powered Tubular Water Turbine

Ask Lasest Price
Brand Name :	DSSD
Model Number :	Tubular turbine generator
Certification :	CE
Price :	Negotiation
Payment Terms :	D/P, D/A, L/C, T/T
Supply Ability :	500 SET
Delivery Time :	5-8 months

Add to Cart

Product Details
Company Profile

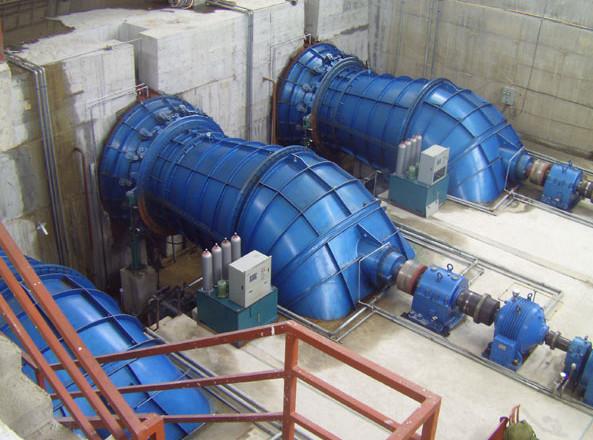

Hydro Powered Tubular Water Turbine

hydro powered tubular water turbine and generator for low water head hydro power plant

Hydro Powered Tubular Water Turbine And Generator For Low Water Head Hydro Power Plant

1. Product Description

Tubular Water Turbine:

tubular turbine is a new hi-tech product. It is well suitable for hydropower plants with water head ranging from 5 m to 20 m and unit capacity below 15MW. It has the following particular advantages: Its efficiency is higher than shaft-extension type tubular units and axial flow units; its cost is lower than axial flow units and bulb tubular units, and it is convenient to operate and maintain. tubular turbine is divided into fixed blade type and moveable blade type.

Hydro Powered Tubular Water Turbine

2. Product Details

Water Head	5m-20m
Runner Diameters	According to the design
Power Range	100KW to 70MW
Frequency	50HZ/60HZ
Generator Voltage	400V, 800V, 6300V, 10500V
Layout pattern	Horizontal or Vertical
Material(blades)	Stainless Steel ZG0Cr13Ni4Mo
Excitation	Brushless or Static excitation system
Generator Insulation	F/F
Lifespan	30~50 years
Manufacturer	Deyang Dongsen Hydropower Equipment Co., Ltd.

Hydro Powered Tubular Water Turbine

FAQ:

1: What Kind of water turbine should I choose?

Please tell me the water head,water flow,frequency and output power,we will provice a solution.

2: Can we offer you all equipment for hydro power plant?

Yes, We can offer you water turbine, hydro turbine generator, pressure governor, turbine wheel, control screenand so on.

3: Can you do the EPC for the hydro power plant?

Yes, We can design, producing and install the equipment, we will dispatch technologist and workers to install the equipment.

4: what the packing of the equipment?

We will use wooden box to protect product
