100KW~20MW Francis Turbine Generator Small Water Turbine Hydro
Generator Mini Francis

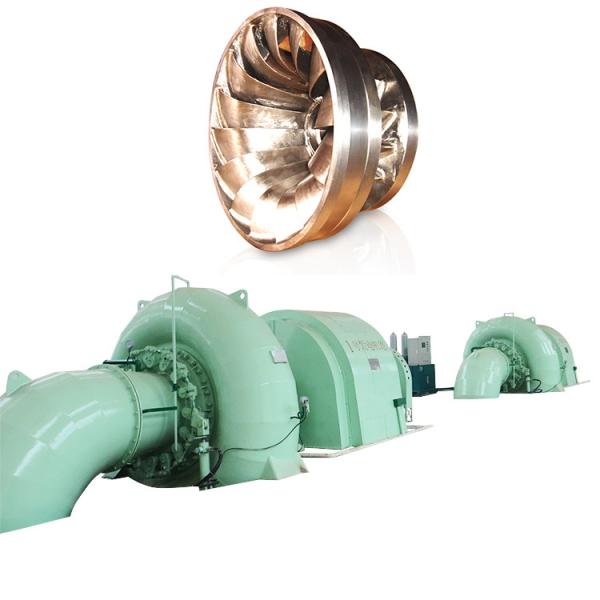

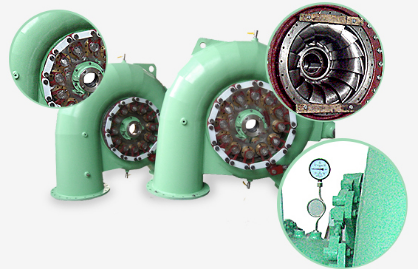

Francis Turbine Generator
Francis Turbine, also called mixed flow turbine and variable
pressure turbine, is widely used in hydropower plants with low,
middle and high water head ranging from 25m onwards to 550m
commonly 30 to 300m. It has advantages such as: working stable,
structure compact. Most import of all, the Francis water turbine we
made would work with high efficiency of about 92% to 94.5%.
| Water Head | 25m-300m |
| Runner Diameters | 0.45m-5m |
| Power Range | 100KW to 20MW |
| Frequency | 50HZ/60HZ |
| Generator Voltage | 400V, 800V, 6300V, 10500V |
| Layout pattern | Horizontal or Vertical |
| Material(blades) | Stainless Steel ZGOCr13Ni4Mo |
| Excitation | Brushless or Static excitation system |
| Generator Insulation | F/F |
| Lifespan | 30-50 years |
| Manufacturer | Deyang Dongsen Hydropower Equipment Co., Ltd. |
More Details
Other Hot Products
Pelton, Francis, Tubular, Kaplan
A Whole Power House
1. gates
2. penstocks
3. inlet valve
4. turine
5. generator
6. automation, control, protection
7. medium-voltage switchgear
8. power transformer
9. high-voltage switchgear
10. transmission line
About us
Deyang Dongsen Hydropower Equipment Co., Ltd (DSSD) is a
comprehensive engineering company especially in Hydropower
projects. Our brand is WOONERGY. The factory is Located in Deyang
city which is one of the three major manufacturing bases in China.
DSSD gains great support from the "One Belt One Road" policy in
this region. Having 20 years' experience in hydraulic turbine
manufacturing and having passed the ISO 9001 standard, WOONERGY is
professional on designing, manufacturing, installation, project
investment and EPC.
The main products are Francis turbine, Kaplan turbine, Tubular turbine, Pelton turbine and Turgo turbine with capacity from 100 to 70,000KW.

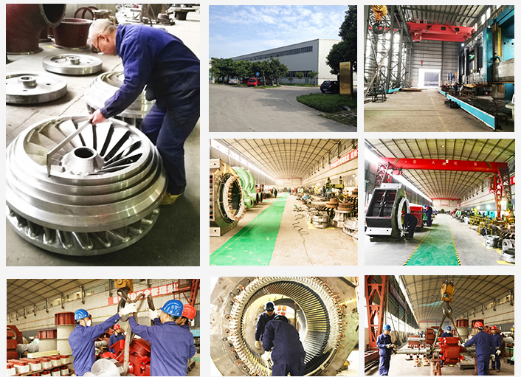

The factory has professional engineers who can assemble the
complete set of equipment effectively. We sell reliable products
for more than 500 hydropower stations including manufacturing new
hydraulic providing auxiliaries, install ing transmission lines,
project designing, equipment upgrading and maintenance.
DSSD enjoys high reputation from our customers and partners.
Recently, the company has paid much attention to developing the
projects on South Asia South-East Asia. South America and many
other areas all around the world. With its central idea of
providing good quality and high efficiency products, we hope to
support more hydropower stations beyond China to make full use of
water energy.And following the motto of "Customer, Quality and
Reputation comes the first" and seeking mutual benefit, DSSD is
pursuing its proficiency to be a top-class supplier.
